2009 eXmark Turf Tracer HP THP19KAE483 19 hp Kawasaki 48 in.
Request a Quote Financing Calculator Request a Brochure Financing Form

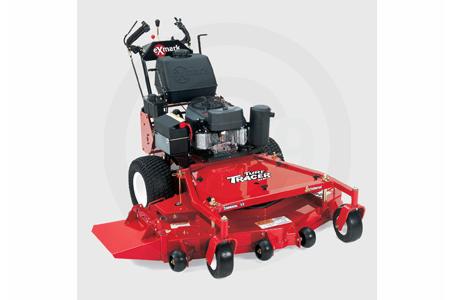

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Receive Exceptional Performance and Productivity from this Floating-deck, Hydro-drive Mower

  • Powered by 19 hp Kawasaki® KAI-Series engine.
  • 48 in. cutting deck.
  • Ground speeds up to 6.2 mph forward and 2.2 mph in reverse.
  • Features Exmark's exclusive Enhanced Control System (ECS).
  • Electric start standard.
  • Blade-Tip speed approximately 18,500 fpm.
  • Large (16 x 7.50-8) Turf Master® drive tires for increased traction and overall performance.
  • Standard with 9 x 3.50-4 smooth-tread, semi-pneumatic, front caster tires, which nearly eliminates tire repair.
  • Innovative blade engagement system provides ultra-smooth blade engagement and minimizes maintenance and repair costs associated with more expensive electric PTO designs.
Optional Accessories
  • Exmark StandOn
  • Micro-Mulch™ System
  • Exmark Turf Striper
  • Three-Bushel Bagger
  • Walk-Behind Weight Set
Specifications
  • Engine: 19 hp Kawasaki KAI V-Twin with electric start.
  • PTO Engagement: Mechanical blade engagement with blade brake.
  • Electrical System: 12-V battery, 15 amp alternator.
  • Blades: 3-16.25 in. (41.3 cm)
  • Weight: 625 lb.
  • Width: 57.9 in. (147.1 cm)
  • Length: 73.7 in. (187.0 cm)
  • Height: 42 in. (107 cm)
  • Deck Style: Full-floating side-discharge standard with option to bag or mulch.
  • Deck Width: 48 in. (121.9 cm).
  • Cutting Heights: 1.5 in. (3.8 cm) to 4.5 in. (11.4 cm) in 0.5 in. (1.3 cm) increments.
  • Blades: ExcaliburTM 0.20 in. (5.1 mm) thick alloy steel.
  • Blade Spindles: 1.75 in. (44.5 mm) diameter.
  • Blade-Tip Speed: Approximately 18,500 fpm.
  • Front Caster Tires: Double-yoke, 9 in. x 3.50-4 in., semi-pneumatic smooth tread.
  • Drive Tires: 16 in. x 7.50-8 in., 4-ply TurfMaster.

Specifications

Engine
Engine Manufacturer Kawasaki
Horse Power 19 hp
Engine Type 19 hp Kawasaki KAI V-Twin
Displacement 585 cc
General
Wheel Size Front: 9 in. x 3.50-4 in.; Rear: 16 in. x 7.50-8 in.
Deck
Deck Size 48 in.
Discharge Type Standard: Side; Optional: Bagger or Mulch

Compare Models

 Print








Year 2009
Manufacturer Exmark
Model Turf Tracer HP THP19KAE483 19 hp Kawasaki 48 in.
Style Walk Behind
Deck
Deck Size 48 in.
Discharge Type Standard: Side; Optional: Bagger or Mulch
Engine
Engine Manufacturer Kawasaki
Horse Power 19 hp
Engine Type 19 hp Kawasaki KAI V-Twin
Displacement 585 cc
General
Transmission
Wheel Size Front: 9 in. x 3.50-4 in.; Rear: 16 in. x 7.50-8 in.
Fuel Capacity

Current Promotions

There are currently no promotions available for this product.
