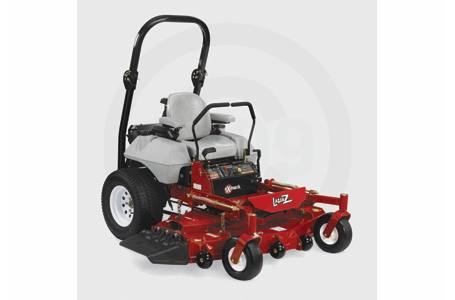

2009 eXmark Lazer Z Advantage LAS28KA604 28 hp Kawasaki 60 in.
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Full-size Lazer Z Performance and Value

  • Powered by 28 hp Kawasaki® engine.
  • 60 in. cutting deck.
  • Full-floating, UltraCut™ 5.5 in. deep deck design.
  • High-back, Elastomeric Vibration Control (EVC) seat with armrests.
  • 13 x 5.0-6 smooth tread, pneumatic front caster tires.
  • 24 x 12-12, 4-ply Turf Master tires.
  • Adjustable dampeners allow the operator to customize drive responsiveness to suit personal preference.
  • Blade-Tip speed approximately 18,500 fpm.
  • Convenient retractable seatbelt.
  • Robust engine and muffler guard better protects engine and muffler damage, minimizing maintenance costs.
Optional Accessories
  • Micro-Mulch™ System
  • UltraVac® 3 Bagger and QDS Systems
  • Exmark Turf Striper
  • Sun Shade
  • Light Kit
  • Trash Container
  • CustomRide™ Seat Suspension
  • Operator Controlled Discharge
  • LazerLocker
Specifications
  • Engine: 28 hp Kawasaki V-Twin, governed to 3750 rpm.
  • Drive System: Two Hydro-Gear 12cc/rev pumps with integral SCR valves, powering twin high-torque Hydro-Gear wheel motors with 1.25 in. (3.2 cm) diameter tapered shafts. Shaft mounted cooling fan on one pump.
  • Speed: Infinitely variable speed selection from 0-9.5 mph (15.3 kmph) forward, 0-6.1 mph (9.8 kmph) reverse.
  • PTO Engagement: MagStop Electromagnetic 200 ft-lbs clutch. 2-year warranty.
  • Fuel Capacity: 11 gals. (41.6 l) twin fuel tanks.
  • Blades: 3-20.5 in. (52.1 cm)
  • Weight: 1160 lbs. (526.2 kg)
  • Width: 72.2 in. (183.4 cm)
  • Length: 78.5 in. (199.4 cm)
  • Height: 72 in. (182.9 cm)
  • Deck Style: Full-floating UltraCutTM side-discharge standard with option to bag or mulch.
  • Deck Width: 60 in., 10-gauge top that is formed and continuously seam welded, with 10-gauge top reinforcement plate, 7-gauge side skirt. 7-gauge reinforcement rings at spindle assembly. 5.5 in. deep, 4-point suspension, full-floating deck with 6 adjustable anti-scalp rollers.
  • Cutting Heights: 1.5 in. (3.8 cm) to 5.0 in. (12.7 cm) in 0.25 in. (0.64 cm) increments and adjustable from operator’s seat.
  • Blade-Tip Speed: Approximately 18,500 fpm
  • Tractor Frame: Welded, heavy-duty tubular steel.
  • Steering & Motion Control: Hydraulically dampened twin levers adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to two height positions.
  • Front Caster Tires: 13 in. x 5.0-6 in., smooth tread, pneumatic tires.
  • Drive Tires: 24 in. x 12-12 in., 4-ply Turf Master.
  • Turning Radius: True zero-turn.
  • Parking Brake: Lever-actuated drum and band integrated with transmission-neutral interlock.
  • Seat: High-back, Elastomeric Vibration Control (EVC) seat, which has no springs. Seat adjusts fore and aft and features padded armrests.

Specifications

Engine
Engine Manufacturer Kawasaki
Horse Power 28 hp
Engine Type 28 hp Kawasaki V-Twin
Displacement 764 cc
General
Transmission Two Hydro-Gear 12cc/rev pumps with integral SCR valves, powering twin high-torque Hydro-Gear wheel motors with 1.25 in. (3.2 cm) diameter tapered shafts. Shaft mounted cooling fan on one pump.
Wheel Size Front: 13 in. x 5.0-6 in.; Rear: 24 in. x 12-12 in.
Fuel Capacity 11 gals. (41.6 l)
Deck
Deck Size 60 in.
Discharge Type Standard: Side; Optional: Bagger or Mulching Kit

Compare Models

 Print








Year 2009
Manufacturer Exmark
Model Lazer Z Advantage LAS28KA604 28 hp Kawasaki 60 in.
Style Riding
Deck
Deck Size 60 in.
Discharge Type Standard: Side; Optional: Bagger or Mulching Kit
Engine
Engine Manufacturer Kawasaki
Horse Power 28 hp
Engine Type 28 hp Kawasaki V-Twin
Displacement 764 cc
General
Transmission Two Hydro-Gear 12cc/rev pumps with integral SCR valves, powering twin high-torque Hydro-Gear wheel motors with 1.25 in. (3.2 cm) diameter tapered shafts. Shaft mounted cooling fan on one pump.
Wheel Size Front: 13 in. x 5.0-6 in.; Rear: 24 in. x 12-12 in.
Fuel Capacity 11 gals. (41.6 l)
