2010 Cub Cadet Volunteer™ 4 x 4 EFI Yellow Cab
Request a Quote Financing Calculator Request a Brochure Financing Form

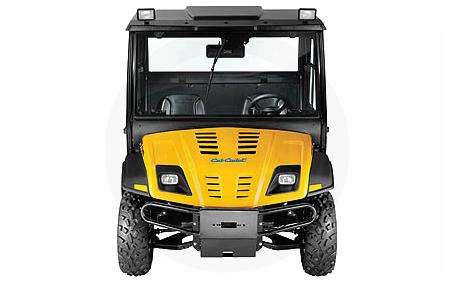

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • 748 cc EFI V-Twin engine delivers efficient power for reliable starting of your utility vehicle and exceptionally smooth, quiet operation.
  • 4-wheel drive w/differential lock delivers additional traction for the utility vehicle through slippery and unstable conditions.
  • 4-wheel independent suspension gives this hauler the smoothest ride over even the roughest terrain.
  • 14.4 cu. ft. steel cargo box volume.
  • 3 in. fully welded frame.
  • 0-32 mph ground speed.
  • Standard factory installed cab, wiper, lights, strobe, mirrors, bench seat and dual purpose tires
  • Industry leading 2-year warranty.
Specifications
  • Engine Type: 31 HP Kohler® Aegis™ EFI V-Twin
  • Engine Displacement: 748 cc
  • Engine Fuel: Gas
  • Maximum Torque: 47.7 lb./ft. at 2400 rpm
  • Ignition: Transistor controlled
  • Lubrication / Filter: Full pressure w/ spin-on filter
  • Cooling System: Liquid
  • Air Cleaner: Replaceable, heavy duty
  • Suspension Type: Fully independent dual A-arm with adjustable coil-over shocks
  • Drive Type: Continuously variable (CVT) w/enclosure
  • Front Drive / Lock: Hilliard® front differential
  • Rear Differential Lock: Standard, mechanical engagement
  • Ground Speed: 0-32 mph
  • Transaxle: Fully enclosed, oil bath
  • Gear Selection: F (hi/lo) / N / R
  • Gear Selector: Mechanical - Hurst® shifter
  • Battery: 450 cold crank amps.
  • Alternator: 12 volt-60 amp. regulated
  • Headlights: Two halogen, 37.5-watt
  • Wiring: Automotive-style fused
  • Low Fuel Indicator: Standard
  • Brake Type: Four wheel 8 hydraulic disc
  • Parking Brake: Hand operated, mechanical disc
  • Steering Type: Rack and pinion
  • Length / Width: 119 in. / 63.55 in.
  • Height: 73 in.
  • Vehicle Weight (including fuel/fluids): 2,050 lbs.
  • Tread Center: F: 52 in.; R: 50 in.
  • Wheel Base: 78 in.
  • Ground Clearance (under foot platform): 10 in. (Clearance may vary with tire selection)
  • Turn Clearance Radius: 11 ft.
  • Cargo Box L/W/H: 51.6 in. x 42 in. x 11.5 in.
  • Cargo Box Material: Steel
  • Cargo Box Volume: 14.4 cu. ft.
  • Cargo Box Capacity Weight: 1,000 lbs.
  • Towing Capacity: 1,400 lbs.
  • Payload Capacity: 1,400 lbs. (Includes 200 lb. operator, 200 lb. passenger and maximum bed capacity)
  • Fuel System Capacity: 7 gal.
  • Color: Cub Cadet Yellow
  • 4 Wheel Drive: Standard
  • OPS (Operator Presence System): Standard
  • Seating Capacity/Type: 2/Bench Seat
  • Power Port: Standard 12 volt in-dash
  • Additional Storage: Standard under seat glove box
  • Rear Receiver: Standard 2, Class 1
  • Tires: Dual purpose
  • Front Tire Size: 25 in. x 10 in.-12 in.
  • Rear Tire Size: 25 in. x 10 in.-12 in.
  • Rims: 12 in. Steel
  • Warranty: 2-year limited
Attachments
  • Winch
  • Hood Rack
  • Bed Mat
  • Electrical Accessory Harness
  • Front Receiver
  • UV Cover
  • Electric Bed Lift
  • Floor Mats
  • Gadget Bar / Hand Bar (GPS not included)
  • AM/FM/CD Radio (req. A 209)
  • 12 in. Aluminum Rims
  • Salt Spreader (req. A209)
  • H.D. Alternator
  • Reverse Backup Alarm
  • 14 in. Aluminum Rim & Tire Kit (w/Bounty Hunter Tires)
  • Seat Covers
  • Universal Signal Kit
  • Heavy Duty Plastic Bed Liner
  • Tree Saver Kit (Requires Winch)
  • Gun Boot
  • Dual Purpose Tires w/Black Rims (set of 4)
  • Speedometer and Fuel Gauge
  • Warn 4000 lb. Winch
  • 22 Cu. Ft. Poly Dump Cart
  • Buss Bar
  • Fog Lights
  • Electric Angle for 39A70024
  • 72 Super Duty Blade
  • Super Trapp Sports Exhaust (does not fit diesel models)

Specifications

Engine
Engine Type 31 HP Kohler® Aegis™ EFI V-Twin
Displacement 748 cc
Cooling Liquid
Fuel System Gas
Ignition Transistor controlled
Chassis
Front Suspension Fully independent dual A-arm with adjustable coil-over shocks
Front Brakes Four wheel 8 hydraulic disc
Front Tire 25 in. x 10 in.-12 in.
Rear Suspension Fully independent dual A-arm with adjustable coil-over shocks
Rear Brakes Four wheel 8 hydraulic disc
Rear Tire 25 in. x 10 in.-12 in.
Dimensions
Dry Weight 2,050 lbs.
Fuel Capacity 7 gal.
Wheelbase 78 in.
Ground Clearance 10 in. (Clearance may vary with tire selection)
Box Capacity 1,000 lbs.
Towing Capacity 1,400 lbs.
Transmission
Transmission Fully enclosed, oil bath
Drive System Continuously variable (CVT) w/enclosure
General
Speedometer Optional
Colors Cub Cadet Yellow
Warranty 2-year limited

Compare Models

 Print








Year 2010
Manufacturer Cub Cadet
Model Volunteer™ 4 x 4 EFI Yellow Cab
Style 4x4
Chassis
Front Suspension Fully independent dual A-arm with adjustable coil-over shocks
Front Brakes Four wheel 8 hydraulic disc
Front Tire 25 in. x 10 in.-12 in.
Rear Suspension Fully independent dual A-arm with adjustable coil-over shocks
Rear Brakes Four wheel 8 hydraulic disc
Rear Tire 25 in. x 10 in.-12 in.
Dimensions
Dry Weight 2,050 lbs.
Front Travel
Fuel Capacity 7 gal.
Rear Travel
Wheelbase 78 in.
Ground Clearance 10 in. (Clearance may vary with tire selection)
Box Capacity 1,000 lbs.
Rack Capacity
Towing Capacity 1,400 lbs.
Engine
Engine Type 31 HP Kohler® Aegis™ EFI V-Twin
Displacement 748 cc
Bore and Stroke
Cooling Liquid
Compression Ratio
Fuel System Gas
Ignition Transistor controlled
General
Speedometer Optional
Tachometer
Odometer
Colors Cub Cadet Yellow
Warranty 2-year limited
Transmission
Transmission Fully enclosed, oil bath
Drive System Continuously variable (CVT) w/enclosure
