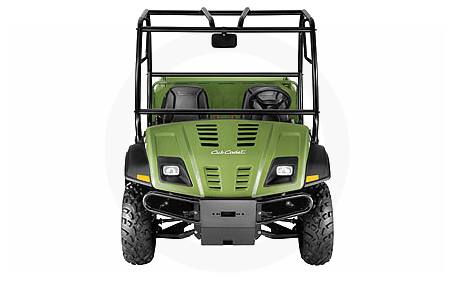

2010 Cub Cadet Volunteer™ 4 x 4D Green
Request a Quote Financing Calculator Request a Brochure Financing Form

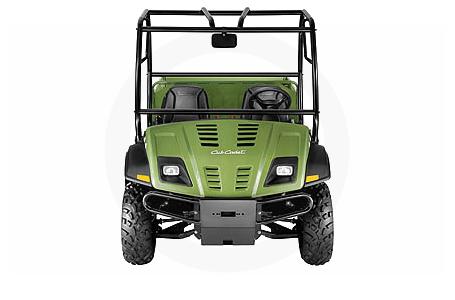

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • 854 cc diesel engine delivers efficient power for reliable starting of your utility vehicle and exceptionally smooth, quiet operation.
  • 4-wheel drive w/differential lock delivers additional traction for the utility vehicle through slippery and unstable conditions.
  • 4-wheel independent suspension gives this hauler the smoothest ride over even the roughest terrain.
  • 14.4 cu. ft. steel cargo box volume.
  • 3 in. fully welded frame.
  • 0-25 mph ground speed.
  • High back bucket seats provide more operator comfort while reducing stress.
  • Industry leading 2-year warranty.
Specifications
  • Engine Type: 21.9 HP Yanmar® 3-in-line cylinder diesel
  • Engine Displacement: 854 cc
  • Engine Fuel: Diesel
  • Maximum Torque: 36.9 lb./ft. at 2400 rpm
  • Ignition: Transistor controlled
  • Lubrication / Filter: Full pressure w/ spin-on filter
  • Cooling System: Liquid
  • Air Cleaner: Replaceable, heavy duty
  • Suspension Type: Fully independent dual A-arm with adjustable coil-over shocks
  • Drive Type: Continuously variable (CVT) w/enclosure
  • Front Drive / Lock: Hilliard® front differential
  • Rear Differential Lock: Standard, mechanical engagement
  • Ground Speed: 0-25 mph
  • Transaxle: Fully enclosed, oil bath
  • Gear Selection: F (hi/lo) / N / R
  • Gear Selector: Mechanical - Hurst® shifter
  • Battery: 450 cold crank amps.
  • Alternator: 12 volt-65 amp. regulated
  • Headlights: Two halogen, 37.5-watt
  • Wiring: Automotive-style fused
  • Low Fuel Indicator: Standard
  • Brake Type: Four wheel 8 hydraulic disc
  • Parking Brake: Hand operated, mechanical disc
  • Steering Type: Rack and pinion
  • Length / Width: 119 in. / 63.55 in.
  • Height: 73 in.
  • Vehicle Weight (including fuel/fluids): 1,650 lbs.
  • Tread Center: F: 52 in.; R: 50 in.
  • Wheel Base: 78 in.
  • Ground Clearance (under foot platform): 11 in. (Clearance may vary with tire selection)
  • Turn Clearance Radius: 11 ft.
  • Cargo Box L/W/H: 51.6 in. x 42 in. x 11.5 in.
  • Cargo Box Material: Steel
  • Cargo Box Volume: 14.4 cu. ft.
  • Cargo Box Capacity Weight: 1,000 lbs.
  • Towing Capacity: 1,400 lbs.
  • Payload Capacity: 1,400 lbs. (Includes 200 lb. operator, 200 lb. passenger and maximum bed capacity)
  • Fuel System Capacity: 7 gal.
  • Color: Olive Green
  • 4 Wheel Drive: Standard
  • OPS (Operator Presence System): Standard
  • Seating Capacity/Type: 2/professional high-back
  • Dual Cup Holders: Standard
  • Power Port: Standard 12 volt in-dash
  • Additional Storage: Standard under seat glove box
  • Rear Receiver: Standard 2, Class 1
  • Tires: Trail
  • Front Tire Size: 25 in. x 10 in.-12 in.
  • Rear Tire Size: 25 in. x 10 in.-12 in.
  • Rims: 12 in. Steel
  • Warranty: 2-year limited
Attachments
  • Acrylic Windshield
  • Soft Roof w/Rear Window
  • Soft Side Door Kit
  • Rear View Mirror
  • Light Bar
  • Winch
  • Hood Rack
  • Head Rest Kit
  • Bed Mat
  • Electrical Accessory Harness
  • Front Receiver
  • UV Cover
  • Electric Bed Lift
  • Floor Mats
  • Gadget Bar / Hand Bar (GPS not included)
  • AM/FM/CD Radio (req. A 209)
  • 12 Aluminum Rims
  • Glass Windshield Assembly
  • Manual Wiper Kit (req. A218)
  • Salt Spreader (req. A209)
  • Reverse Backup Alarm
  • 14 Aluminum Rim & Tire Kit (w/Bounty Hunter Tires)
  • Seat Covers
  • Universal Signal Kit
  • Heavy Duty Plastic Bed Liner
  • Tree Saver Kit (Requires Winch)
  • Bench Seat
  • Poly Roof Hard Top
  • Gun Boot
  • Dual Purpose Tires w/Black Rims (set of 4)
  • Turf Tires w/Black Rims (set of 4)
  • Speedometer and Fuel Gauge
  • Warn 4000 lb. Winch
  • 22 Cu. Ft. Poly Dump Cart
  • Buss Bar
  • Fog Lights
  • Electric Angle for 39A70024
  • 72 Super Duty Blade
  • Tip Out Glass Windshield & Mirror (Deluxe Cab Component)
  • Hard Roof and Rear Windshield (Deluxe Cab Component)
  • Hard Doors (Deluxe Cab Component)
  • Electric Wiper and Lights (req. 39A70025 & 39A70026)

Specifications

Engine
Engine Type 21.9 HP Yanmar® 3-in-line cylinder diesel
Displacement 854 cc
Cooling Liquid
Fuel System Diesel
Ignition Transistor controlled
Chassis
Front Suspension Fully independent dual A-arm with adjustable coil-over shocks
Front Brakes Four wheel 8 hydraulic disc
Front Tire 25 in. x 10 in.-12 in.
Rear Suspension Fully independent dual A-arm with adjustable coil-over shocks
Rear Brakes Four wheel 8 hydraulic disc
Rear Tire 25 in. x 10 in.-12 in.
Dimensions
Dry Weight 1,650 lbs.
Fuel Capacity 7 gal.
Wheelbase 78 in.
Ground Clearance 11 in.
Box Capacity 1,000 lbs.
Towing Capacity 1,400 lbs.
Transmission
Transmission Fully enclosed, oil bath
Drive System Continuously variable (CVT) w/enclosure
General
Speedometer Optional
Colors Olive Green
Warranty 2-year limited

Compare Models

 Print








Year 2010
Manufacturer Cub Cadet
Model Volunteer™ 4 x 4D Green
Style 4x4
Chassis
Front Suspension Fully independent dual A-arm with adjustable coil-over shocks
Front Brakes Four wheel 8 hydraulic disc
Front Tire 25 in. x 10 in.-12 in.
Rear Suspension Fully independent dual A-arm with adjustable coil-over shocks
Rear Brakes Four wheel 8 hydraulic disc
Rear Tire 25 in. x 10 in.-12 in.
Dimensions
Dry Weight 1,650 lbs.
Front Travel
Fuel Capacity 7 gal.
Rear Travel
Wheelbase 78 in.
Ground Clearance 11 in.
Box Capacity 1,000 lbs.
Rack Capacity
Towing Capacity 1,400 lbs.
Engine
Engine Type 21.9 HP Yanmar® 3-in-line cylinder diesel
Displacement 854 cc
Bore and Stroke
Cooling Liquid
Compression Ratio
Fuel System Diesel
Ignition Transistor controlled
General
Speedometer Optional
Tachometer
Odometer
Colors Olive Green
Warranty 2-year limited
Transmission
Transmission Fully enclosed, oil bath
Drive System Continuously variable (CVT) w/enclosure
